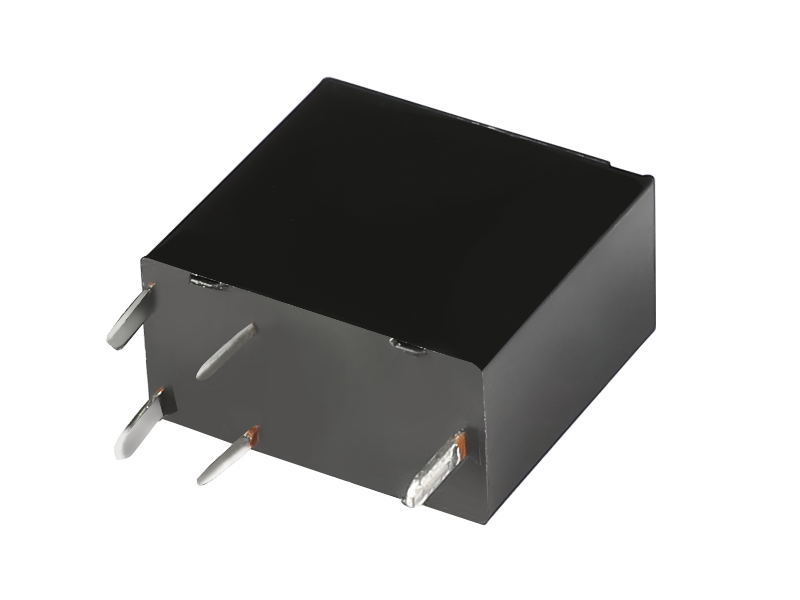

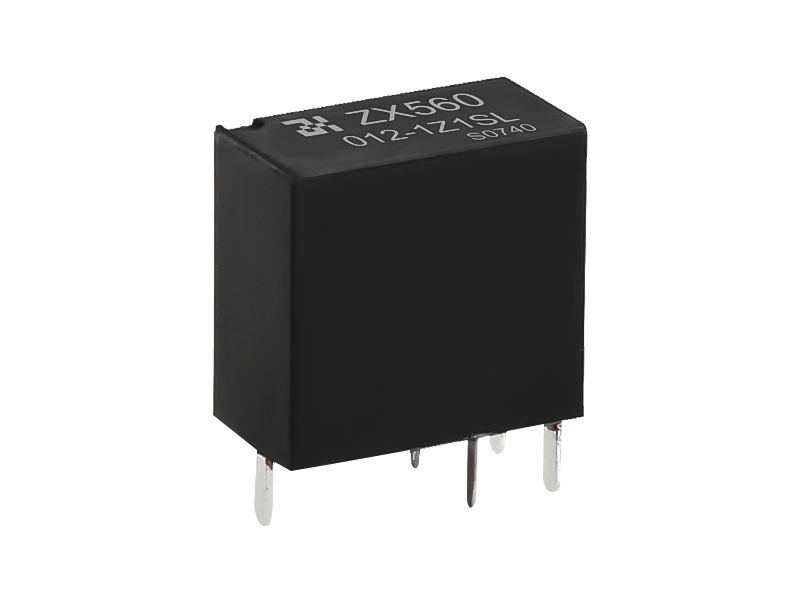

Class H wire Low pick-up option ZX560 Automotive Relays

Class H wire Low pick-up option ZX560 Automotive Relays

Main Features

Single and twin relay

Ultraminiatzed structure,extremely light weight

Low pick-up option

Reflow sodering compatible option

Class H wire

RoHS compliant option



Typical automotive Applications

Flasher                                          Sunroof control

Power antenna                             Steering wheel power tilt

Power window                              Contral door lock

Interval wiper control                 Immobilizer

Contact us PDF Download

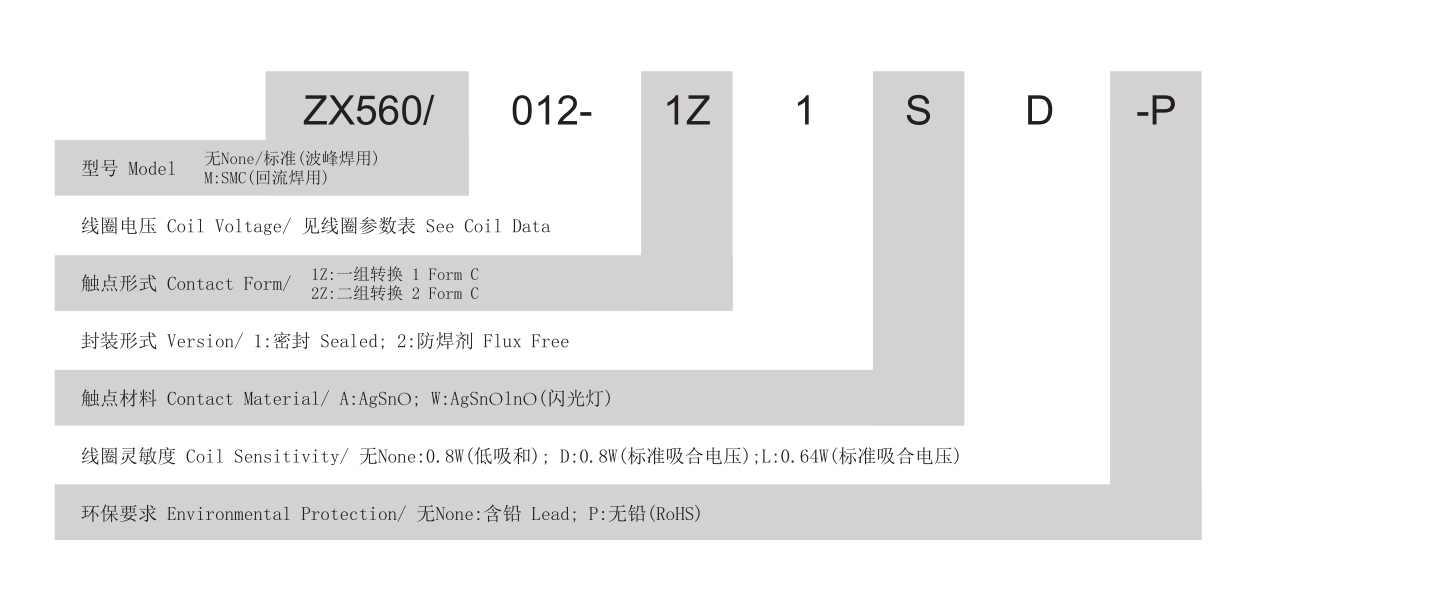

  • Coil Data
    Model Coil Voltage Code Nominal Voltage Coil Resistance Power Consumpution Must Operate Voltage max. Must Release Voltage min./td>
    Low suction voltage type 012 12 180 0.8 6.5 1.0
    D 012 12 180 7.2 1.0
    L 012 12 225 0.64 7.2 1.0


    Contact Data
    Material AgSnO; AgSnOlnO
    Initial Contact Resistance 100mΩ, max. at 0.1A, 6VDC
    Contact Form 1 Form C 2 Form C
    Max.Switching Current Make 25A
    Break 25A
    Max.Continuous Current 25A for hour at 20℃
    Max.Switching Voltage 16VDC
    Min.Load 1A/6VDC
    Sevice Life Mechanical 1×10 6 ops.
    Electrical 1×10 5 ops.

    Characteristics
    Operate/Release Time 2.5ms. typical/1.2ms. typical
    Insulation Resistance 100MΩ, at 500VDC
    Dielectric Strength 500Vrms, 1 min
    Shock Resistance 10g, 100g
    Vibration Resistance 5g, 10-500Hz
    Ambient Temperature Operating：-40℃ to 85℃ Storage：-40℃ to 155℃
    Weight 1 Form C/ 2 Form About 8g

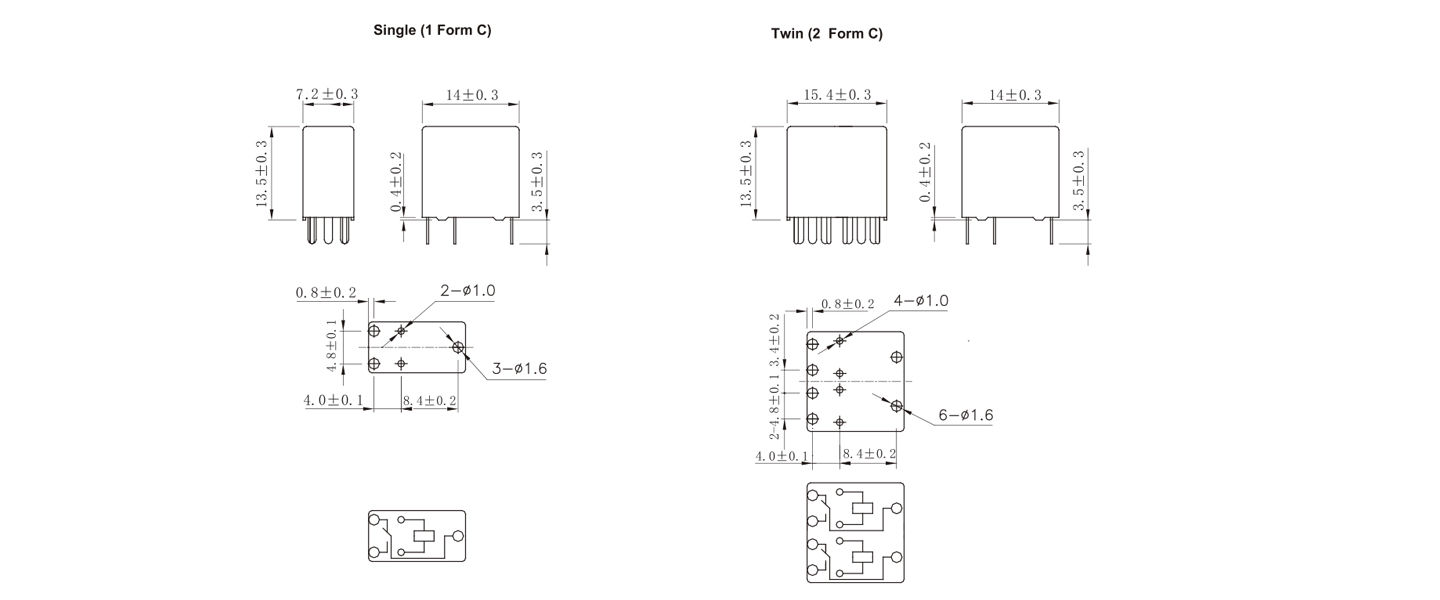

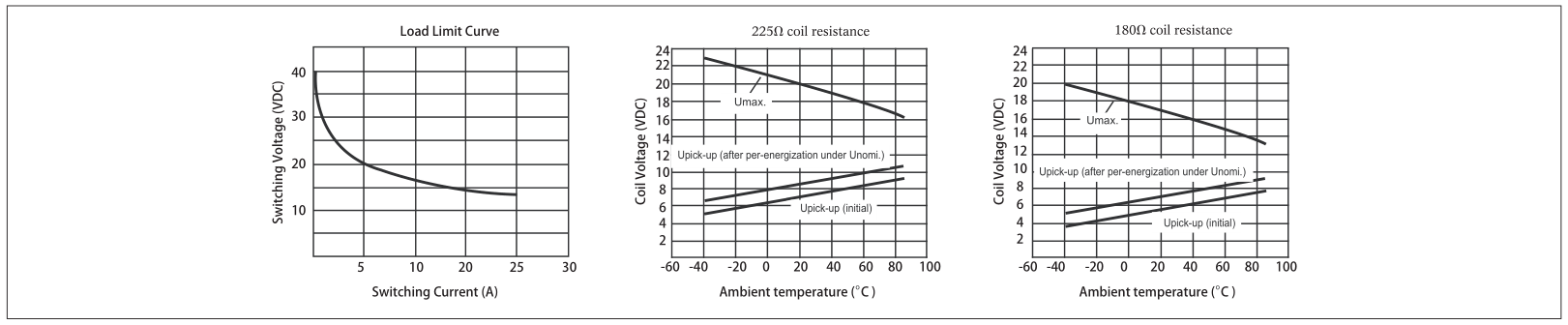

    Referencd Curve

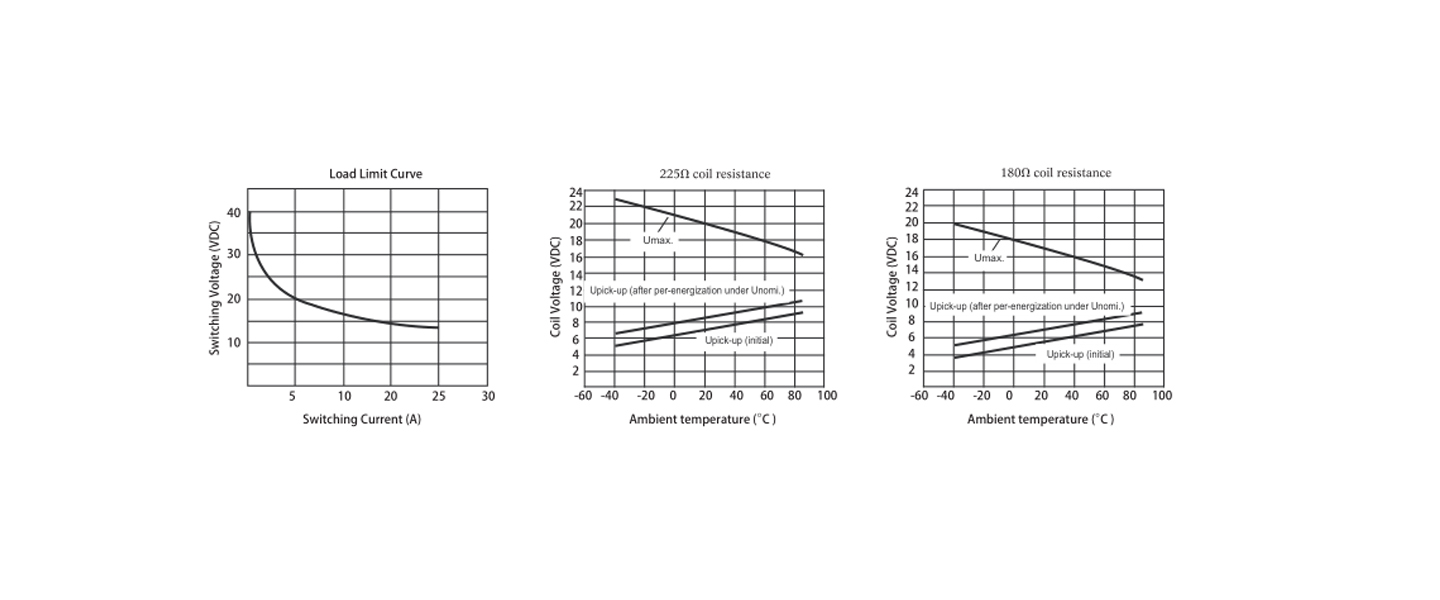

  • 参考曲线 Referencd Curve

  • Notes：

    1. All parameters,unless otherwise specified,are measured at ambient temperature 23℃.

    2. Electriacl life is strongly dependent of switiching fieqency.ON/OFF ratio, environmental conditions and level.

    3. Equivalence:Omron G8N
