DC Contactor ZXEV064-50A High voltage direct current relay

1. Small and lightweight:Internally adopt reliable sealing technology and filled with nitrogen which arc colling ability is high. It can cut off high voltage DC in a short time.

2. High contact reliability:Due to the contact sealed in the nitrogen, therefore it will be not oxidized, also achieving the contact of the dustproof and waterproof.

3. Safety and reliable:Use the professional explosion-proof structure design,to achieve a high degree of security,adopt magnetic quenching helps to cut-off the DC load quickly.

4. Application:DC charging pile, electric vehicles, hybrid vehicles, battery charging and discharging system,Photovoltaic power generation system such as dc high voltage application.

Specifications

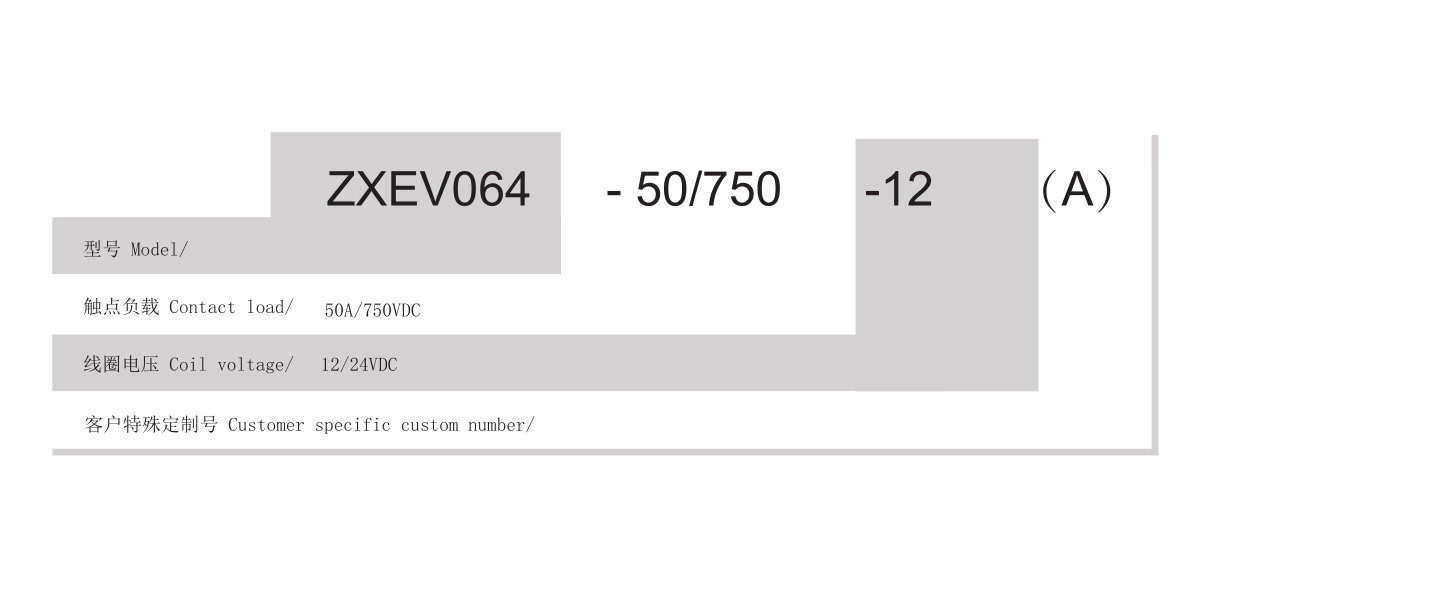

Order mark

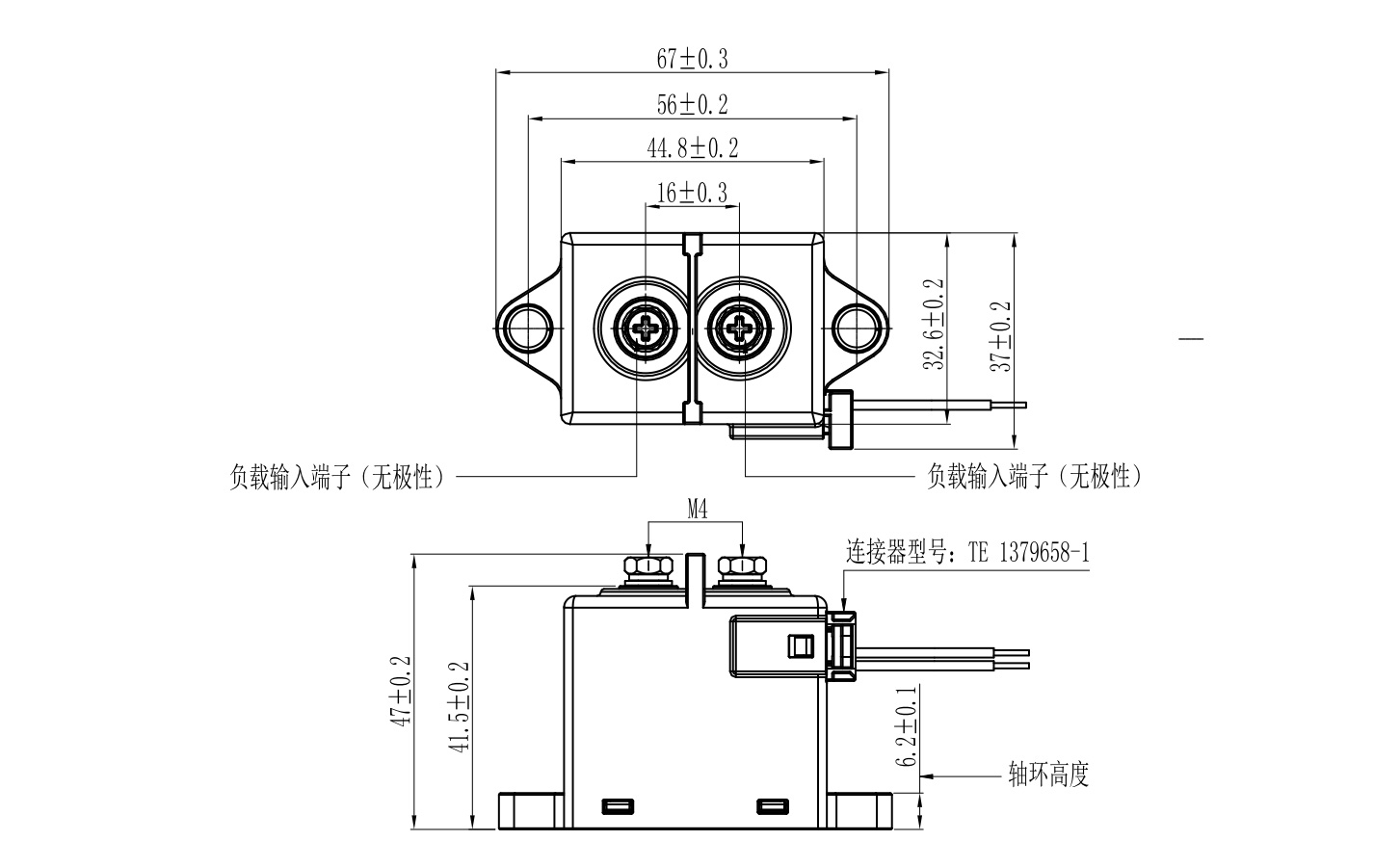

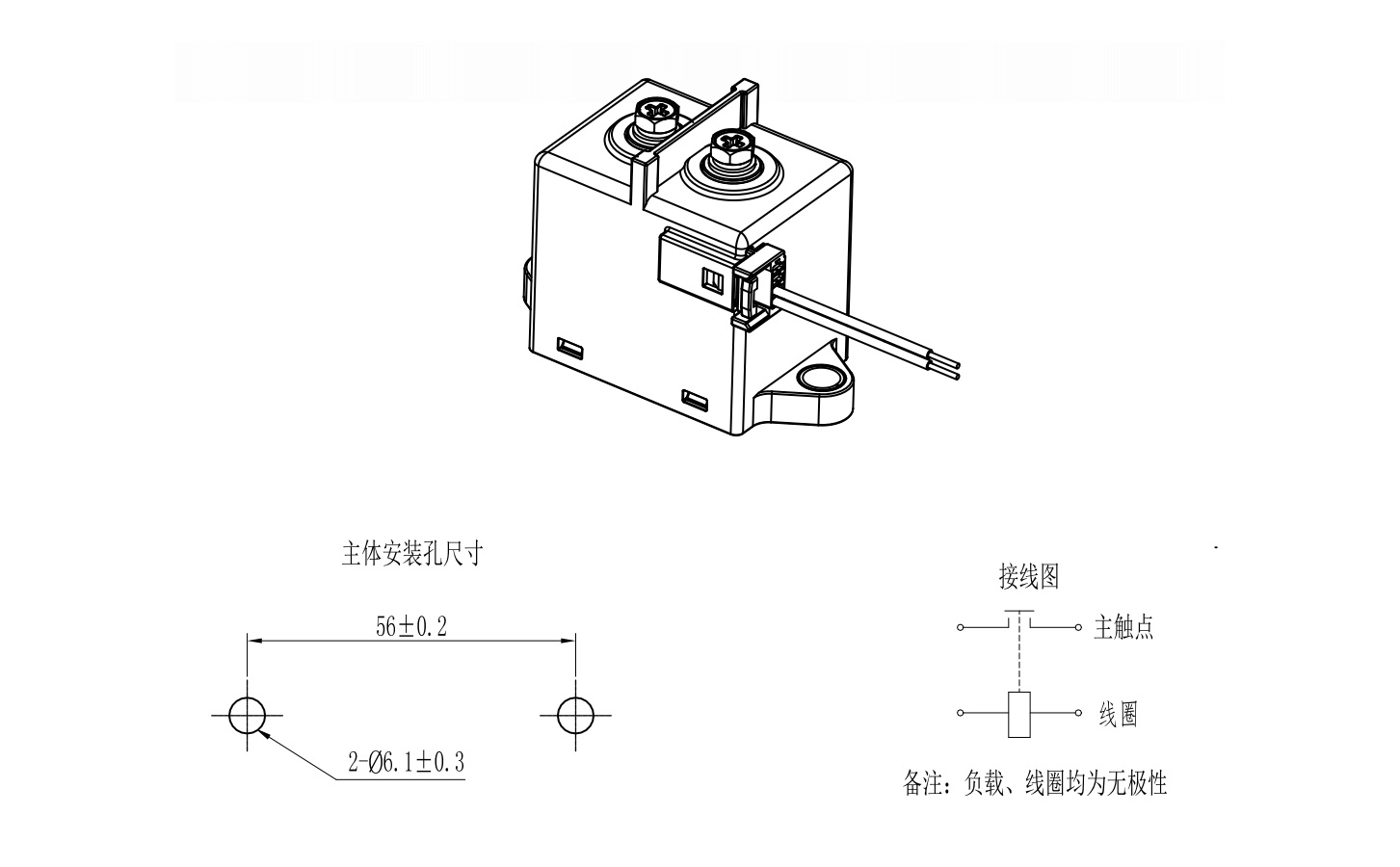

Overall dimensions (unit: mm)
Precautions

Contact Data
Contact load(FLA)	50A/750VDC
Contact form	1H
Voltage drop across contacts per 50A	25mV Max @50A
Limited of current	200A 10秒
Max switching current	500A，750VDC（1次）
Max switching voltage	900VDC
Max switching power	375KW
Electric endurance	50A/450VDC-75000次（Resistive load）
Electric endurance	50A/750VDC-20000次（Resistive load）
Mechanical endurance	2*10^5次
Auxiliary switch	No

Performance Parameters
Insulation resistance	1000M Ω（1000VDC)
Dielectric strength(Coil to contact/Across open contact)	4000VAC 1 min
Dielectric strength(Coil to contact/Across open contact)	3000VAC 1 min
Operate time	≤30ms
Release time	≤10ms
Shock resistance functional	196m/s² (20G以上)
Shock resistance destructive	490m/s²(50G以上)
Ambient temperature	-40～85℃
Humidity	5～85%RH
Virbration resistance	10-200HZ，49m/s²
Terminal	M4 Internal thread
Unit weight	160g
Package	Epoxy encapsulation

Coil Data
Coil resistance (Ω±10%)@23℃
Nominal coil voltage	Min operating voltage	Release voltage	Coil power consumption
12VDC	≤9VDC	≥1VDC	3W
24VDC	≤18VDC	≥2VDC	3W

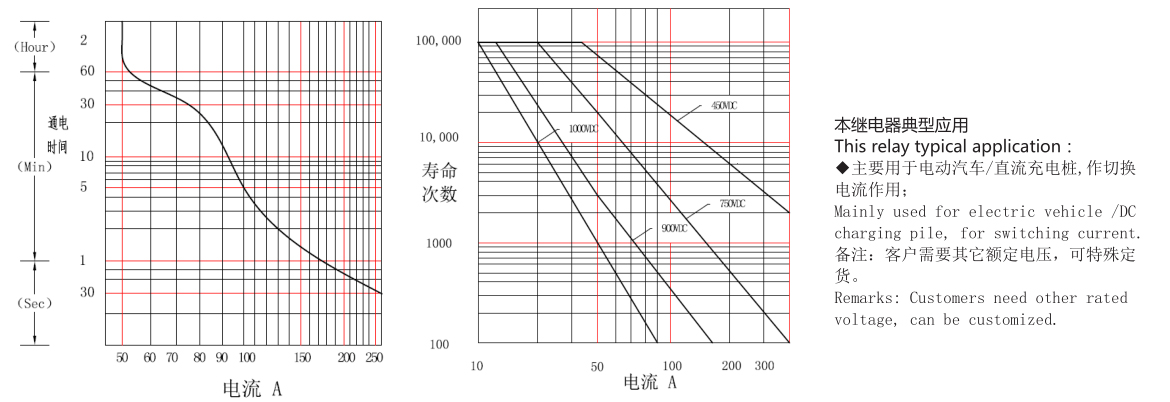

Referencd Curve

1. When installing the relay, to prevent bad connection, please use the flat washer, spring washer and nut fastening, the external connecting plates need closed to the nearest relay terminal part, ensure good connection. Incorrect connection sequence may can cause severe fever and lead to wires to melt or burn.

2. The relay terminal have polarity difference, please do it correct connection according to the surface + - on the relay. If the connection polarity is reversed, the electrical performance will be greatly decreased.

3. The contact parameters of the ratings are impedance loading values, using inductive and capacitive load case, please take measures to absorb the surge, or it may cause electric life decline, and cut off the defect.

4. Please avoid install near the strong magnetic field ( such as the transformer, the magnetic around) and near the heating element.

5. It is forbidden to put the relay in more than using range temperature （-40℃～85℃） environment for a long time, otherwise easy to cause the plastic parts aging and impact product performance.

6. Please avoid adhesion grease and other things on the terminal, please select a suitable connection wire, otherwise it may lead to the terminal abnormal heat, below data for reference:
- ZXEV03-50A: Nominal cross-section 16mm² above
- ZXEV02-100A: Nominal cross-section 40mm² above
- ZXEV01-150A: Nominal cross-section 50mm² above
- ZXEV01-200A: Nominal cross-section 60mm² above
- ZXEV01-250A: Nominal cross-section 80mm² above
- ZXEV01-300A: Nominal cross-section 100mm² above
7. The screws locking torque control within range of the following rules, if exceed the range, the excessive torque may cause damage.

(1)Terminals installed part of externally threaded
- M5 Nut（ZXEV03-50A）：2Nm～4Nm；
- M6 Nut（ZXEV02-100A、ZXEV01-150A）：3Nm～4Nm；
- M8 Nut（ZXEV01-200A、ZXEV01-250A、ZXEV01-300A）6Nm～8Nm。
(2)The terminals installed part of internally threaded
- M4 Screw：3Nm～4Nm
- M6 Screw：3Nm～4Nm

Product description

DC Contactor ZXEV064-50A High voltage direct current relay has a continuous current capacity of 50A and can withstand larger current loads, making it suitable for high-power equipment and systems. The current rating of 50A allows the high voltage DC relay to be widely used in a variety of different electrical equipment and systems, improving the versatility and applicability of the product. DC contactors usually have fast switching speeds, which help improve the response speed and working efficiency of the system. The ZXEV064-50A High voltage direct current relay maintains low power consumption under high current loads, helping to improve the energy efficiency of the entire system.
