Heavy Motor Load Switching ZX508 Automotive Relays

Heavy Motor Load Switching ZX508 Automotive Relays

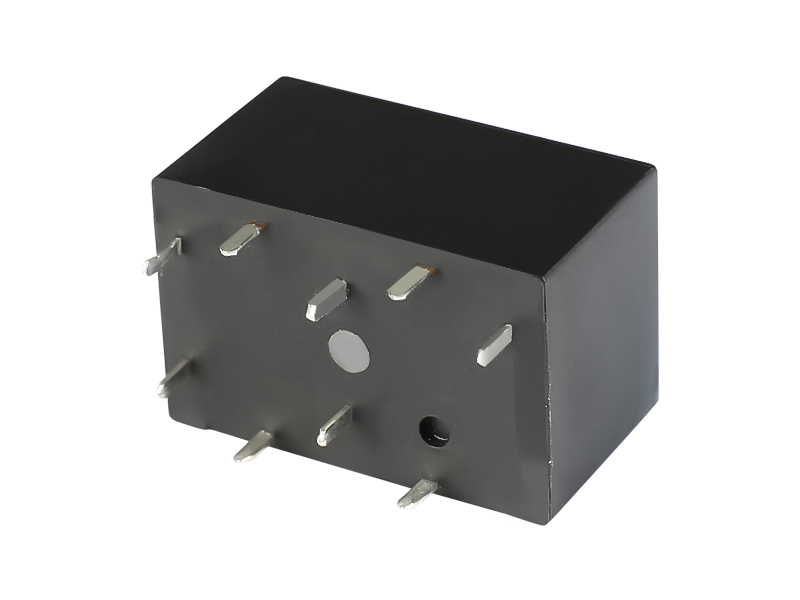

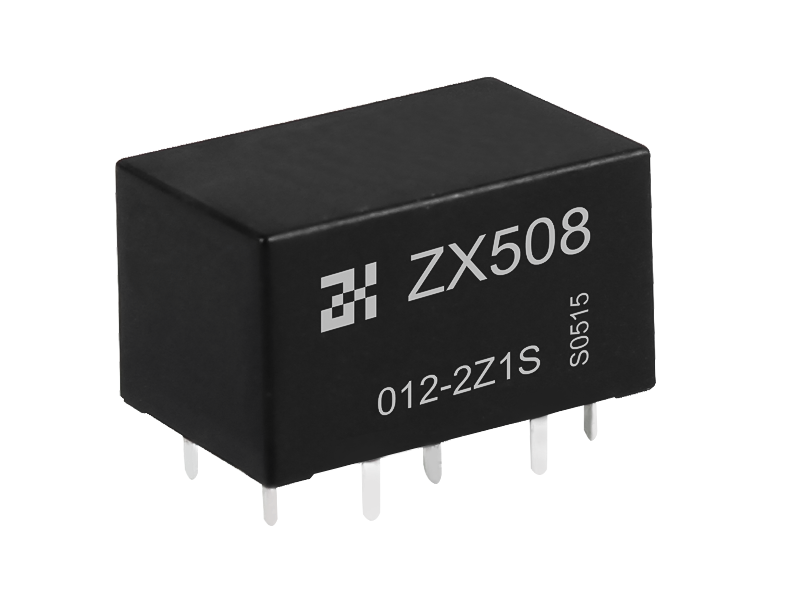

Main Features

2 independent relays(ZX181) in one housing

Subminiaturized structure,light weight

Improved contact capacity

Big gap type available for heavy motor load switching



Typical automotive Applications

Power antenna                              Sunroof control                             Seat adjustment

Power window                              Tilt lock wheel

Interval wiper control                 Central door lock

Contact us PDF Download
  • Coil Data
    Coil Voltage Code Nominal Voltage Coil Resistance Must Operate Voltage max. Must Release Voltage min.
    (0.6W)Standard (0.8W)Big Gap
    006 6 60 45 3.6 0.6
    009 9 135 100 5.4 0.9
    012 12 240 180 7.3 1.2
    024 24 960 720 14.4 2.4
    Contact Data
    Material AgNi0.15; AgSnOlnO; AgCdO; AgNi10
    Initial Contact Resistance 100mΩ, max. at 0.1A, 6VDC
    Contact Form 2 Form C
    Max.Continuous Current Make 60A
    Break 20A
    Max.Continuous Current 35A/10min； 25A/1Hr
    Max.Switching Voltage 16VDC
    Min.Load AgNi0.15：0.1A/5VDC; AgSnOlnO：0.5A/5VDC
    Sevice Life Mechanical 1×10 7 ops.
    Electrical 1×105 ops. See Note 3

    Characteristics
    Operate/Release Time 10ms. typical/5ms. typical
    Insulation Resistance 100MΩ, at 500VDC, 50%RH
    Dielectric Strength 500Vrms, 1 min
    Shock Resistance 10g, 11ms.
    Vibration Resistance DA1.5mm, 10-55Hz
    Ambient Temperature Operating：-30℃ to 85℃ Storage：-40℃ to 100℃
    Weight Approx 13g
    Drop Resistance Drop Resistance 1M height drop on concrete

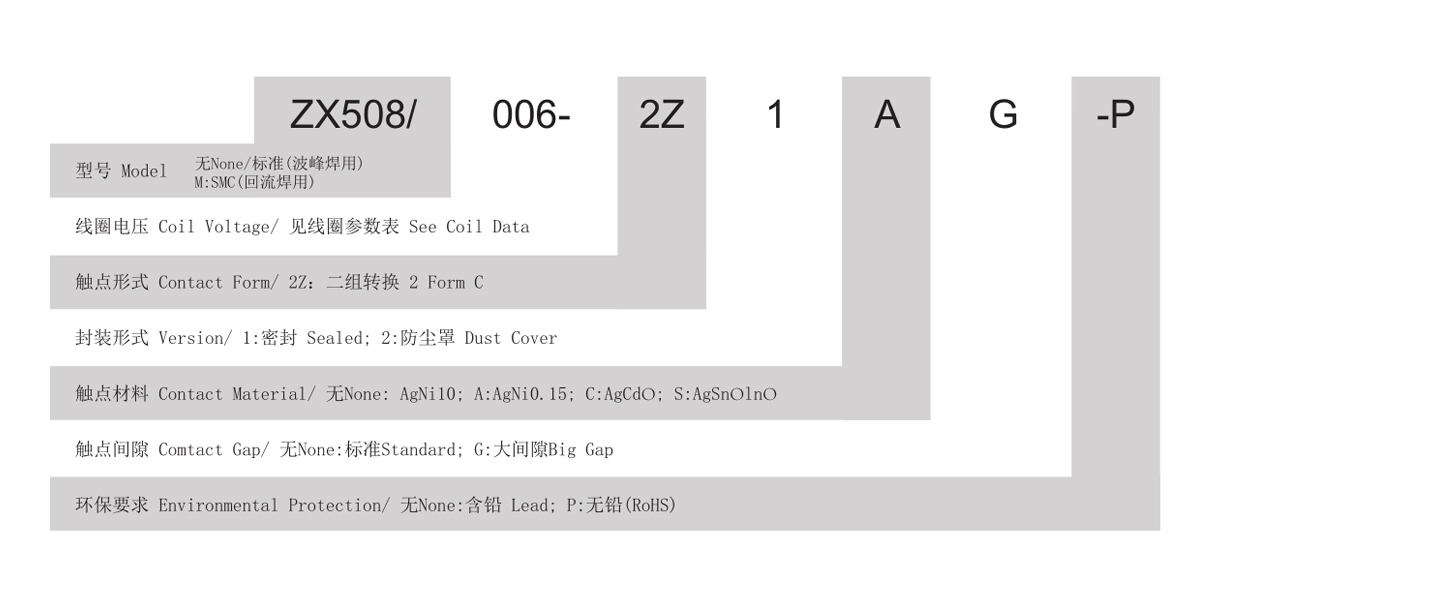

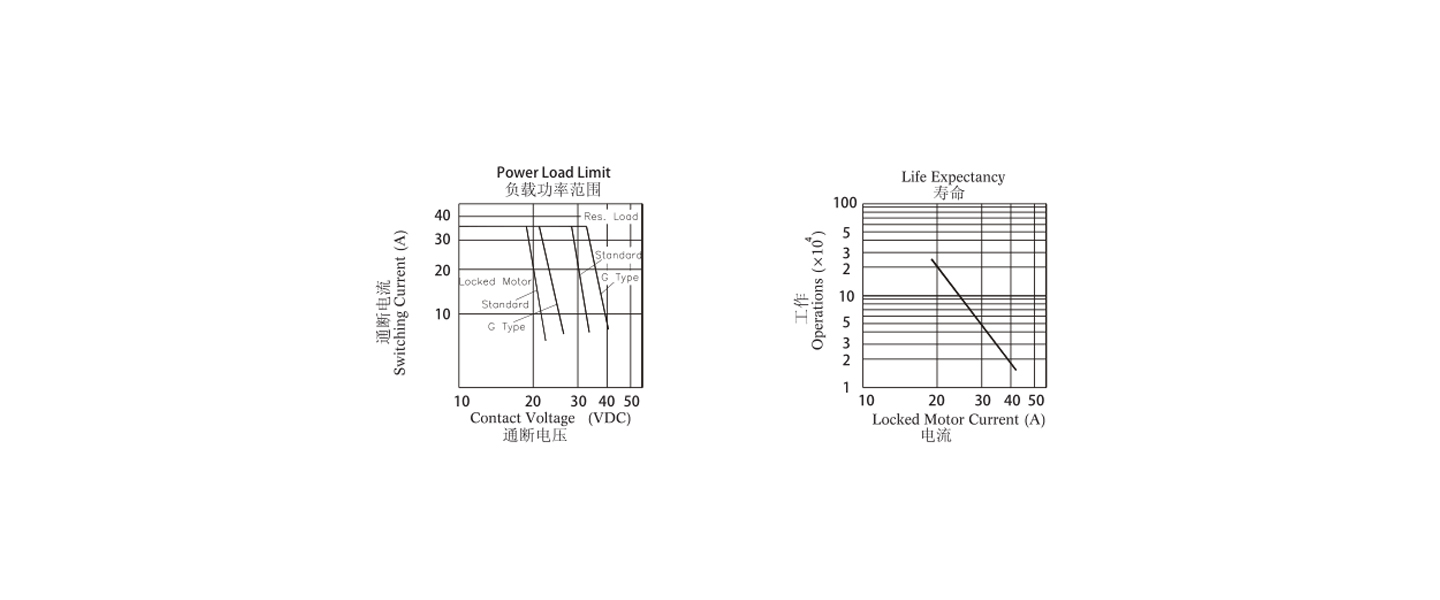

  • Referencd Curve

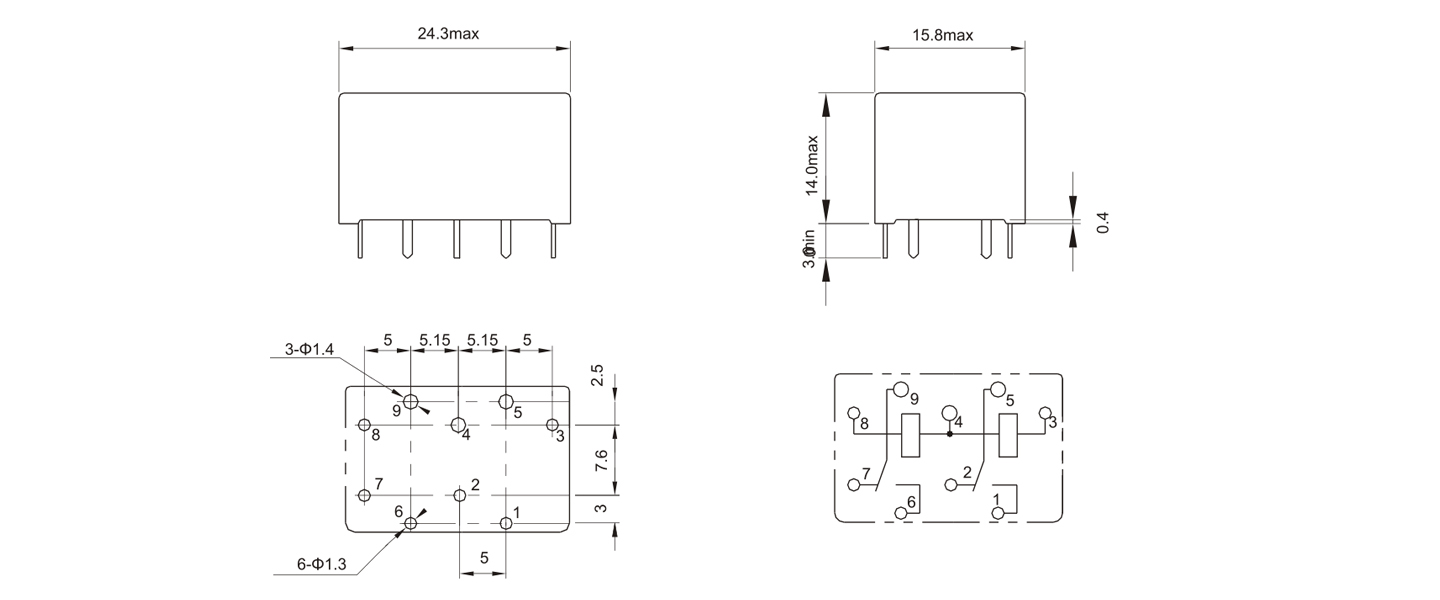

    Overall Dimensions, Mounting Holes(Bottom View), Wiring Diagrams

  • Notes：

    1.All parameters,unless otherwise specified,are measured at ambient temperature 23℃.

    2.Maximun make current refers to inrush current of lamp load.

    3.Electrical life obtained at motor load of locked rotor at 25A,13.5VDC with operating of 6 ops/min.

    4.Equivalence:Fujitsu FBR510-520
