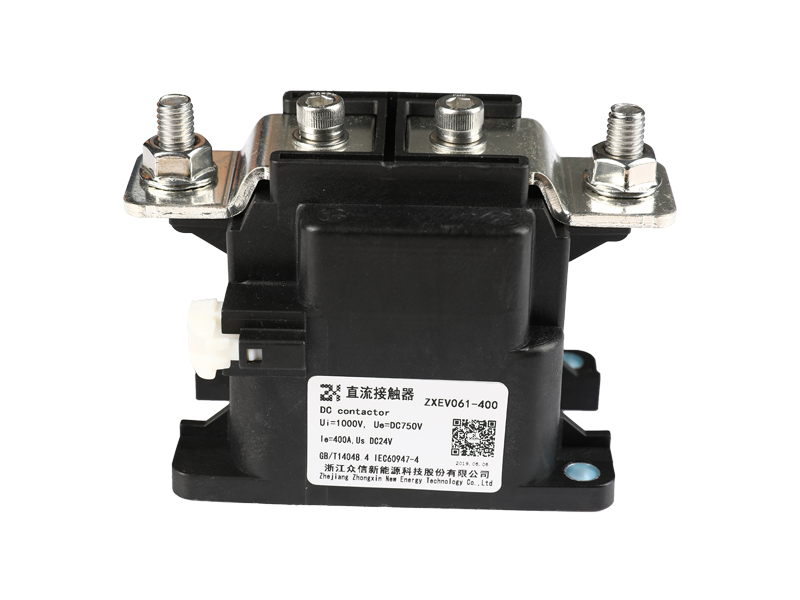

3.8W ZXEV061-400A 24V Ceramic High voltage direct current relay

3.8W ZXEV061-400A 24V Ceramic High voltage direct current relay

1. Small and lightweight:Internally adopt reliable sealing technology and filled with nitrogen which arc colling ability is high. It can cut off high voltage DC in a short time.

2. High contact reliability:Due to the contact sealed in the nitrogen, therefore it will be not oxidized, also achieving the contact of the dustproof and waterproof.

3. Safety and reliable:Use the professional explosion-proof structure design,to achieve a high degree of security,adopt magnetic quenching helps to cut-off the DC load quickly.

4. Application:DC charging pile, electric vehicles, hybrid vehicles, battery charging and discharging system,Photovoltaic power generation system such as dc high voltage application.

Contact us PDF Download

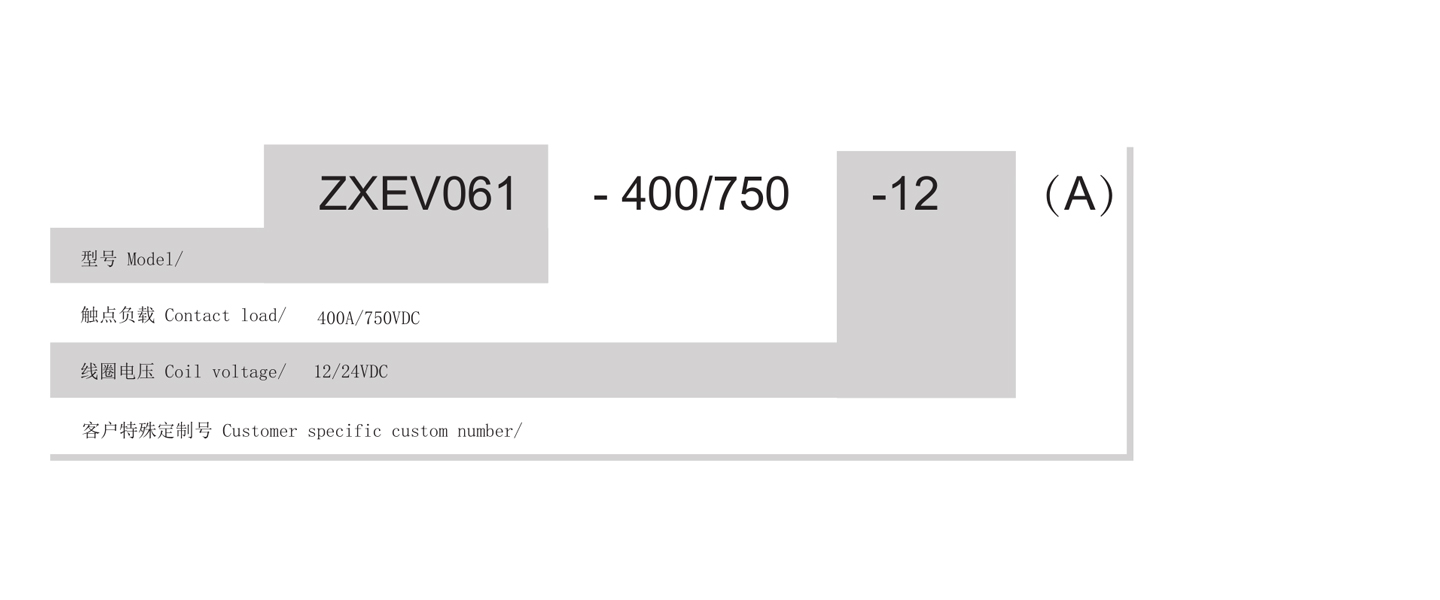

  • Contact Data
    Contact load(FLA) 400A/750VDC
    Contact form 1H
    Voltage drop 120mV Max @400A
    Limited of current 1200A 30秒
    Max switching current 3000A，320VDC（1次）
    Max switching voltage 900VDC
    Max switching power 800KW
    Mechanical life 2*105次
    Electrical durability 400A/450VDC-3000次（Resistive load）
    400A/750VDC-1000次（Resistive load）
    Auxiliary switch No
    Performance Parameters
    Insulation resistance 1000M Ω（1000VDC)
    Dielectric strength Coil to contact 4000VAC 1 min
    Across open contact 3000VAC 1 min
    Operate time ≤30ms
    Release time ≤10ms
    Shock resistance functional
    196m/s² (20G above)
    Shock resistance destructive
    490m/s²(50G above)
    Ambient temperature
    -40～85℃
    Humidity
    5～85%RH
    Virbration resistance
    10-200HZ，49m/s²
    Terminal
    M8 External thread
    Unit weight
    800g
    Package
    Ceramics encapsulation
    Coil Data
    Coil resistance (Ω±10%)@23℃
    Nominal coil voltage Min opreat voltage Release voltage Coil power consumption
    12VDC ≤9VDC ≥1VDC When connect45W(connect 0.1S),Maintain:3.8W
    24VDC ≤18VDC ≥2VDC When connect45W(connect 0.1S),Maintain:3.8W

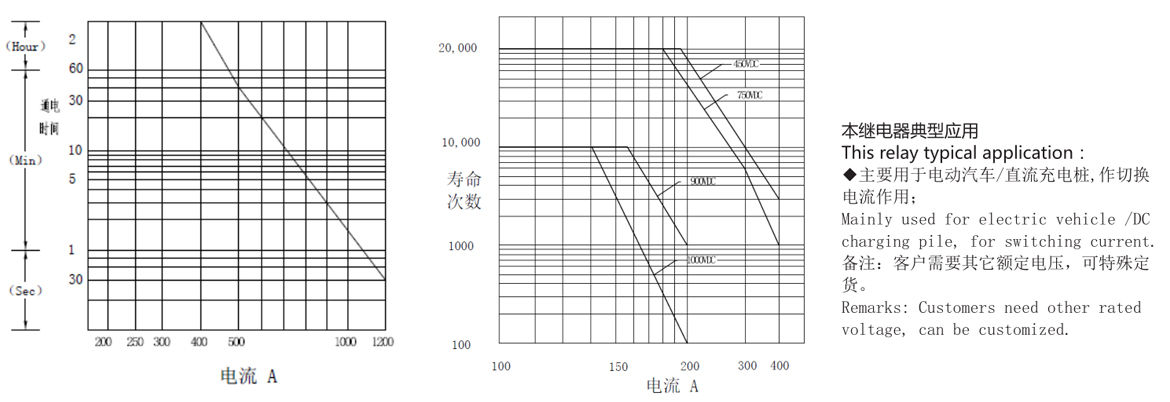

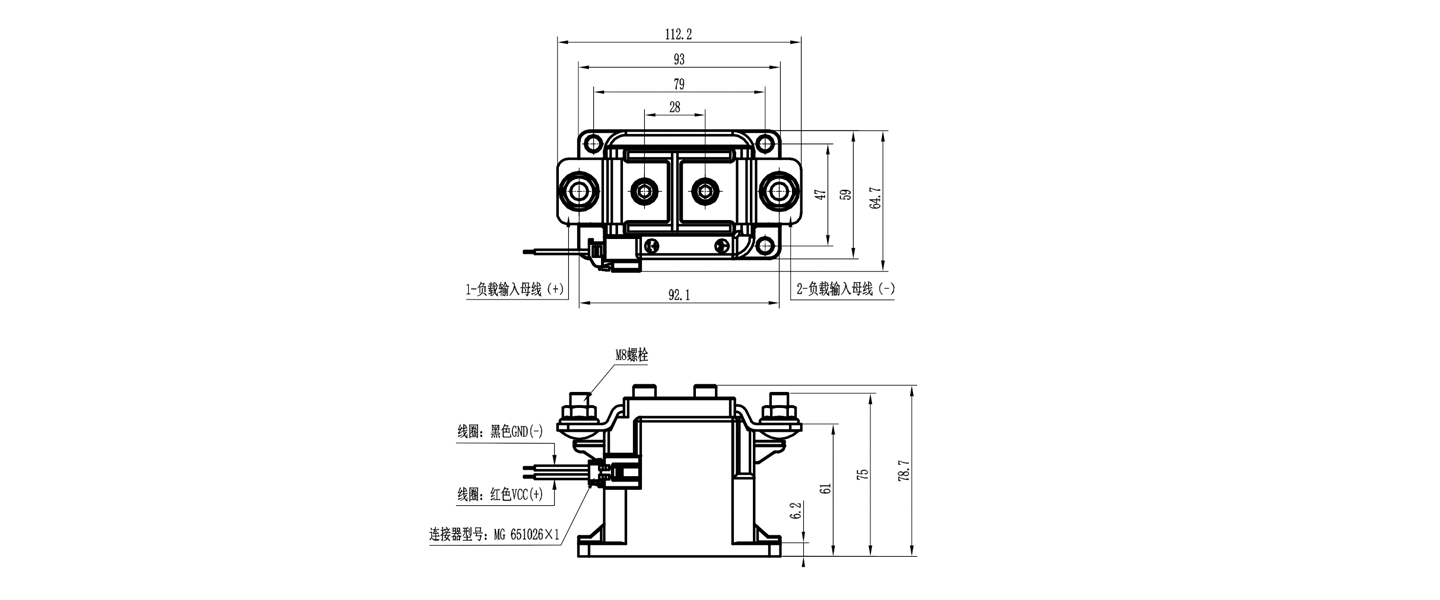

    Referencd Curve

  • 1. When installing the relay, to prevent bad connection, please use the flat washer, spring washer and nut fastening, the external connecting plates need closed to the nearest relay terminal part, ensure good connection. Incorrect connection sequence may can cause severe fever and lead to wires to melt or burn.

    2. The relay terminal have polarity difference, please do it correct connection according to the surface + - on the relay. If the connection polarity is reversed, the electrical performance will be greatly decreased.

    3. The contact parameters of the ratings are impedance loading values, using inductive and capacitive load case, please take measures to absorb the surge, or it may cause electric life decline, and cut off the defect.

    4. Please avoid install near the strong magnetic field ( such as the transformer, the magnetic around) and near the heating element.

    5. It is forbidden to put the relay in more than using range temperature （-40℃～85℃） environment for a long time, otherwise easy to cause the plastic parts aging and impact product performance.

    6. Please avoid adhesion grease and other things on the terminal, please select a suitable connection wire, otherwise it may lead to the terminal abnormal heat, below data for reference:

    • ZXEV03-50A: Nominal cross-section 16mm² above
    • ZXEV02-100A: Nominal cross-section 40mm² above
    • ZXEV01-150A: Nominal cross-section 50mm² above
    • ZXEV01-200A: Nominal cross-section 60mm² above
    • ZXEV01-250A: Nominal cross-section 80mm² above
    • ZXEV01-300A: Nominal cross-section 100mm² above

    7. The screws locking torque control within range of the following rules, if exceed the range, the excessive torque may cause damage.

    (1)Terminals installed part of externally threaded

    • M5 Nut（ZXEV03-50A）：2Nm～4Nm；
    • M6 Nut（ZXEV02-100A、ZXEV01-150A）：3Nm～4Nm；
    • M8 Nut（ZXEV01-200A、ZXEV01-250A、ZXEV01-300A）6Nm～8Nm。

    (2)The terminals installed part of internally threaded

    • M4 Screw：3Nm～4Nm
    • M6 Screw：3Nm～4Nm

Product description

3.8W ZXEV061-400A 24V Ceramic High voltage direct current relay is suitable for various application scenarios requiring large current. The high continuous current capability of high-voltage DC relays can cope with current overload or sudden changes and reduce the risk of equipment damage. Its fast response speed and precise current control capability make it play an important protective role in the power system and help enhance the reliability of the entire system. Ceramic High voltage direct current relays use ceramic materials with excellent insulation properties. Ceramic materials have high strength and hardness and can withstand working requirements in special environments such as high temperature and high pressure. This enables ceramic relays to withstand bumps and vibrations and maintain stable performance in complex operating environments, such as automotive operating environments. High voltage DC relays are equipped with an operating voltage of 24V. 4V belongs to the low voltage category. Compared with high voltage, it is safer to operate and use, reducing the risk of electric shock and electrical accidents. 24V DC power supplies are common in many applications, so high voltage DC relays equipped with 24V operating voltage can be easily integrated into existing electrical systems without the need for complex power conversion or adjustments.
